DESCRIPTION:

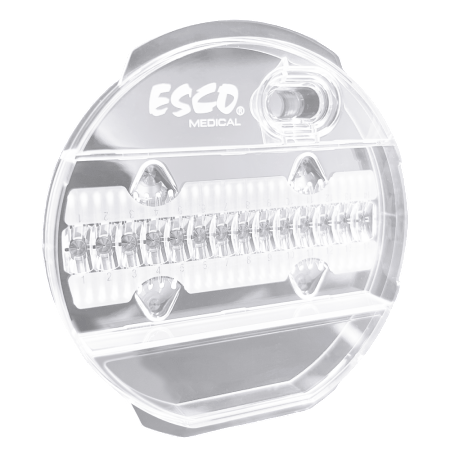

The Esco Medical CultureCoin (culture dish) is an IVF culture cup designed specifically for the MIRI TL incubator.
The MIRI TL is an Esco Medical incubator that captures real-time images of developing embryos that can be viewed as videos.
FEATURES:
- CultureCoin is a single-use gamma-sterilized culture dish whose surfaces are treated with oxygen plasma to effectively prevent bubble formation.
- Its ergonomic design allows embryologists to easily load up to 14 embryos and handle them safely and securely inside the incubator.
- This culture dish features an optically clear 300 µm embryo placement area optimized for microscopy.

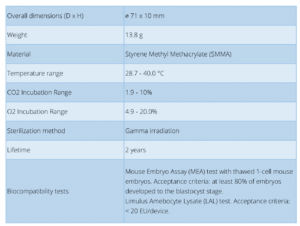

| Overall dimensions (D × H) | ø 71 × 10 mm |
| Weight | 13.8 g |
| Material | Styrene Methyl Methacrylate (SMMA) |
| Temperature range | 28.7 – 40.0 °C |
| CO2 Incubation Range | 1.9 – 10% |
| O2 Incubation Range | 4.9 – 20.0% |
| Sterilization method | Gamma irradiation |
| Lifetime | 2 years |
| Biocompatibility tests | Mouse Embryo Assay (MEA) test with thawed 1-cell mouse embryos. Acceptance criteria: at least 80% of embryos developed to the blastocyst stage.Limulus Amebocyte Lysate (LAL) test. Acceptance criteria: < 20 EU/device. |
